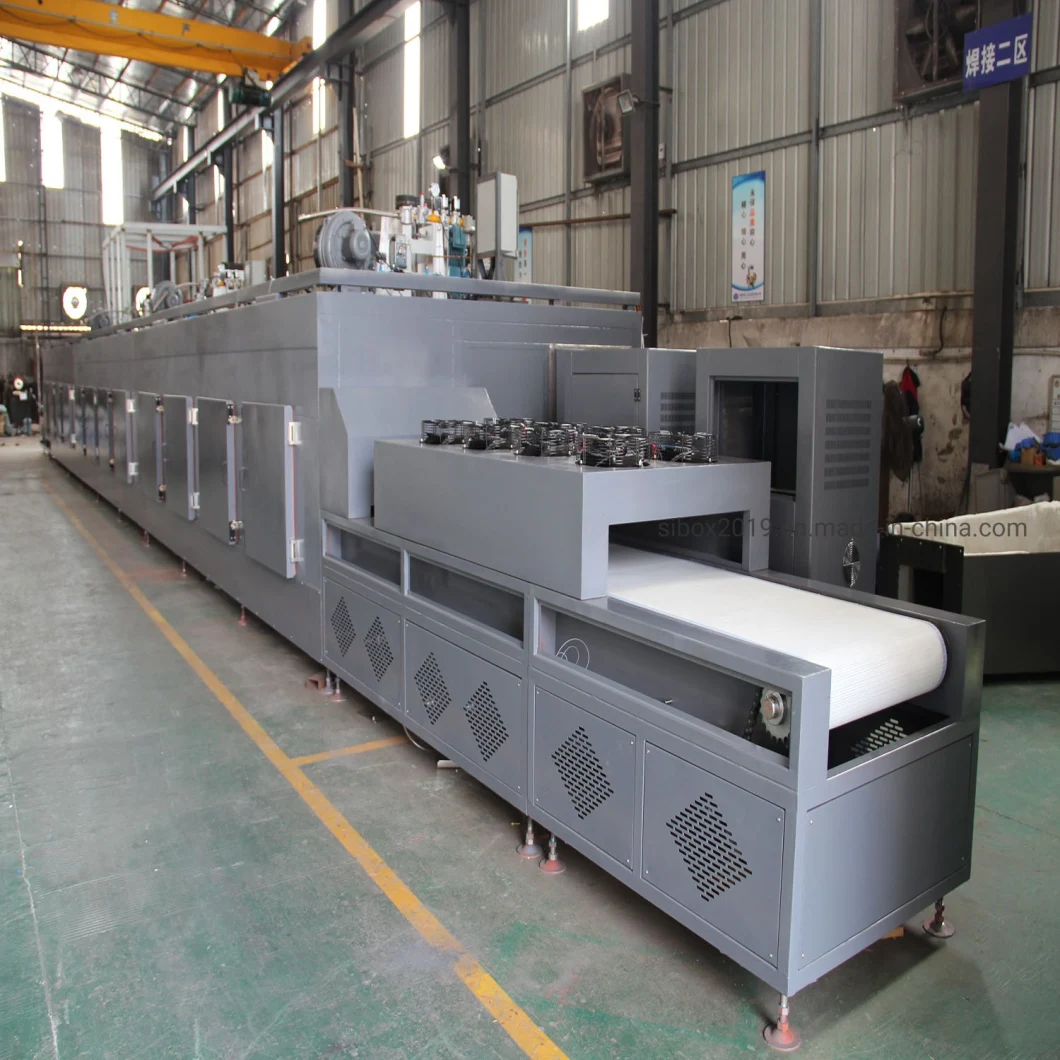

conveyor oven is a oven uses a conveyor or belt to carry process parts or material through the primary heating chamber for rapid thermal processing. It is designed for fast drying and curing of products and is nowadays widely used. Normally a conveyor oven adopts a tunnel structure and is composed of multiple controlled zones. A conveyor furnace also features fast thermal responses, uniform and stable temperature distribution; it can heat treated parts to 800 deg. C. (may vary for different model). Belt speed of a conveyor oven can be adjusted to meet customer demands. According to different baking time requirements of various products, intelligent control system can be implemented through PLC intelligent control system. Drive frequency conversion speed regulation, can realize stepless speed change. And can prestore more than 15 groups of parameters, achieve automatic operation.
suitable for baking chemical gas and food processing industry to bake goods, substrate stress removal, ink curing, paint film drying, etc. Widely used in electronics, electrical, communications, electroplating, plastic, metal chemical, food, printing, composite,pharmaceutical, PC board, powder, immersion, spraying, glass, ceramics, wood building materials...... And so on the precision baking, drying, tempering, preheating, shaping, processing and so on.
Characteristics of the equipment
1,Design according to the proportion of human engineering, easy operation, modern appearance.
2,Argon Arc full Welding of all stainless Steel in Inner to prevent dust from the machine itself.
3,Unique air-duct design to ensure the temperature inside is uniformity
4,First-class technology of heat &thermal insulation, sealing effect is excellent.
5,Double over-temperature protection, safer and more reliable.
6,Rising up fast, and the temperature is stable and accurate.
7,The shell temperature is low, which has little effect on the indoor environment temperature.
8,According to the product set up a variety of heating and air mode, energy saving, safety and environmental protection.
9,Module design:Each section manipulation and operation in flexible independently can be available.
10,Colors can be customized base on color card.
Graphic wind circulation:
|Technical Parameters of Industrial Oven|
|Energy Type||electrical||Gas||Steam||Air Energy||Other|
|Sheathing Material||Cold Drawing Spray-Paint||Stainless S|
|Chamber Material||Stainless S|
|Heat Insulating Material||Aluminosilicate Rock Wool||Insulating Fibre-Board||Firebrick||Other|
|Air Transport Mode||Left and Right||Up and Down||Front and Behind||Symmetrical Left and Right|
|Air Motor Position||Top||bottom||Hindside||Sidepiece||Other|
|Number of Explosion-proof Doors||One||Two||Other|
|Manual door||Single Door||Double Door||Three Doors||Other|
|Automatic Door||Revolution door||Side Sliding Door||Lift door||Roll-Up Door||Other|
|Cart Type||Double-Deck Cart||Motor-Trolley||Landing Cart||Automatic Trolley||Other|
|Control Mode||Instrument Control||HMI Control||Network Control||Other|
|Safety Protection Function||Overtemperature||Overload||Phase Sequence||Earth Leakage Protection||Other|
|Single-sided supply air type||Double-face type||Double-face blast with explosion-proof||Thermal rising type|
|Thermal rising type||Thermal radiation type||Hot air radiation||Hot air radiation|
