Fresh Air Ventilation Dehumidifier to HVAC System Ducting System

Fresh Air Dehumidifier
1.Technical Datasheet
CONLOON New Fresh Air type Ducted Dehumidifier
Test conditionT=30ºC,RH=80%T=30ºC,RH=80%T=30ºC,RH=80%T=30ºC,RH=80%T=30ºC,RH=80%T=30ºC,RH=80%T=30ºC,RH=81%
Max power520W590W1000W1180W1380W1500W4200W
Airflow rate280m3/h380m3/h500m3/h600m3/h950m3/h1200m3/h2500m3/h
Fresh air140m3/h180m3/h200m3/h250m3/h300m3/h350m3/h700m3/h
Air pressure50Pa50Pa80Pa80Pa100Pa100Pa200Pa
Fresh air holeΦ100mmΦ100mmΦ100mmΦ100mmΦ125mmΦ125mmΦ200mm
Indoor return air holeΦ100mmΦ100mmΦ150mmΦ150mmΦ200mmΦ200mmΦ300mm
Indoor supply air holeΦ100mmΦ100mmΦ150mmΦ150mmΦ200mmΦ200mmΦ300mm
FiltersPrimary filter+ Active carbon+HEPA
PurificationAnion+UV light
Working temp.range5-38ºC
Waterproof rateIPXO4
DrainSoft pipe
Control wayIntelligent automatic controller
Applying area10-40m240-60m260-80m280-100m2100-150m2150-200m2about 300m2

2.Main Features
1. All the models are micro-computer control with LCD display from 10%~90%.
2. All the package will be export wooden case
3. All the refrigerant will be R410a
4. All the dehumidify capacity could be customized. We can make even larger machines.
5. All the air inlet and outlet could be round or square.
6. The color and appearance could be customized also.
7. Auto defrost.
8. Humidity 1% set and control freely (the computer board is equipped with power failure memory function)
9. Direct drainage by hosepipe
10. Low noise
11. Fixed brackets are installed at the bottom.

3.Product Display

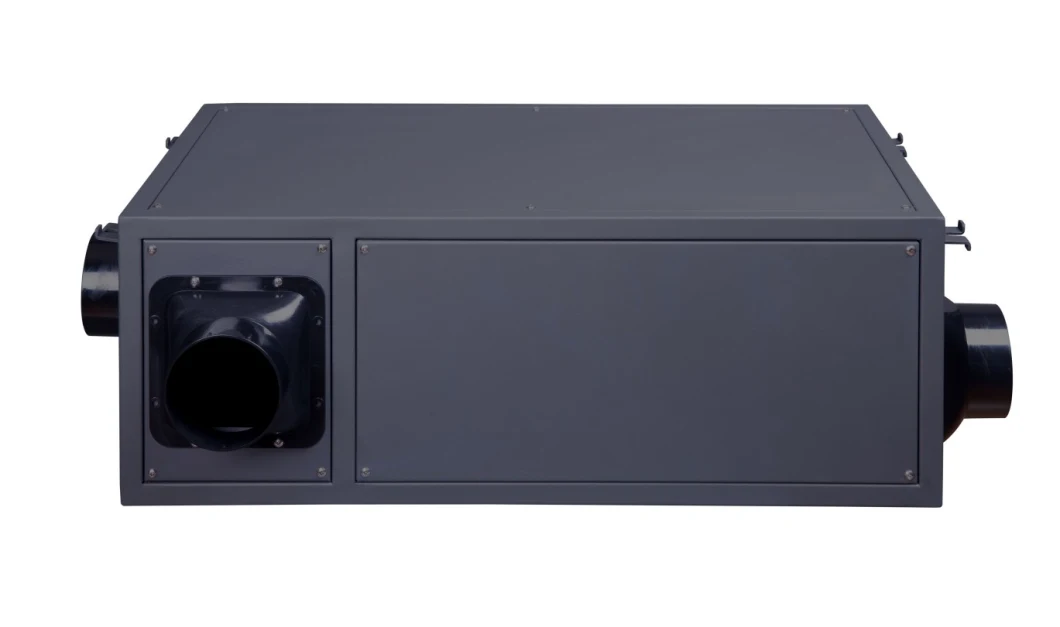

Fresh Air Ventilation Dehumidifier to HVAC System Ducting System
Fresh Air Ventilation Dehumidifier to HVAC System Ducting System
Fresh Air Ventilation Dehumidifier to HVAC System Ducting System

Duct dehumidifier can be hoisted on the ceiling, does not occupy the floor space, suitable for basement, underground garage, indoor swimming pool, business exhibition hall, merchant supermarket, restaurant, entertainment hall, bank business hall, large conference room, business office building, workshop, special warehouse Storage and other places.
Installation of duct dehumidifier should be divided into the dehumidifier host installationthe installation of the air pipethe installation of the drainage pipe and control box installationtotally four parts. Before installation, the first thing is to determine the location of installation, customers need consultation with the designer.

For more information, please contact with our project manager:

4.Packing Details
For small models, we use export brown carton packing. If clients request for wooden packing, we can also make.
For big industrial models, we use export wooden case packing
Fresh Air Ventilation Dehumidifier to HVAC System Ducting System
5.Our Company
Established in 2003, Conloon Electric is one of the leading manufacturer, specializing in the complete range of dehumidifiers and humidifiers in Hangzhou, China.

Conloon Electric has more than 100 employees, among them there are 21 professional technicians who have over 10 years work experiences in air conditioning and cooling industry. The annual output can reach to 500,000pcs and is keeping growing every year.

Conloon Electric continues to seek innovation and enrich the product variety. Our goal is to provide the solutions that are comprehensive and flexible for our customers.

Due to the reasonable price, strict quality control, and guaranteed delivery, our products have gained excellent reputation and wide recognition by our customers from all over the world. Up to now, we have exported to over 50 countries and regions.

Conloon Electric provides OEM and ODM service. Welcome to be our long term business partner.
Fresh Air Ventilation Dehumidifier to HVAC System Ducting System
Fresh Air Ventilation Dehumidifier to HVAC System Ducting System

6.Our Certification: CE, ROHS,CCC
Fresh Air Ventilation Dehumidifier to HVAC System Ducting System


Q: Are you a trading company or manufacture ?

A: As one of the oldest manufactures of dehumidifiers and humidifiers, we are now taking the leading position of cooling industry in mainland China. We have 100 employees with more than 15 engineers and 4 production lines.

Q: Do you accept OEM ?

A: Yes, we can accept OEM, and we have the professional designer to help you design your logo.

Q: Do you accept ODM?

A: We welcome ODM, we have professional engineers team to help you with the design of the dehumidifiers and to provide you the professional suggestion with the dehumidifiers you want.

Q: Can I buy a sample for testing?

A: Yes, we can supply you with a sample. for most of the models, we have them in stock. we can supply you with the sample within 2 days after we get your payment.

Q: Can I visit your factory?

A: We warmly welcome you come to visit us at Hangzhou city, Zhejiang province. You can take the airplane to Shanghai, then take the fast train for 50 minute to Hangzhou railway station, we can pick you up at the railway station. If you fly to Hangzhou directly, we can pick you up at the airport.

8. Why Choose Us

A. We focus on dehumidifier and humidifier manufacturing for over 15years
B. We have professional production team for OEM &ODM orders
C. Full testing before delivery to ensure the quality
D. Strong R&D ability to provide solution to various conditions and cases
E. Online and video technical suppor
